Foreword
Thanks for purchasing COMICA BoomX-U Broadcasting-Level Multi-functional Mini UHF Wireless Microphone.To ensure bring you a good using experience, please read this manual book carefully before using and correctly install and operate.
Main Features
. Mini and Portable, Broadcast Level. Dual Transmitters Triggered by One Receiver

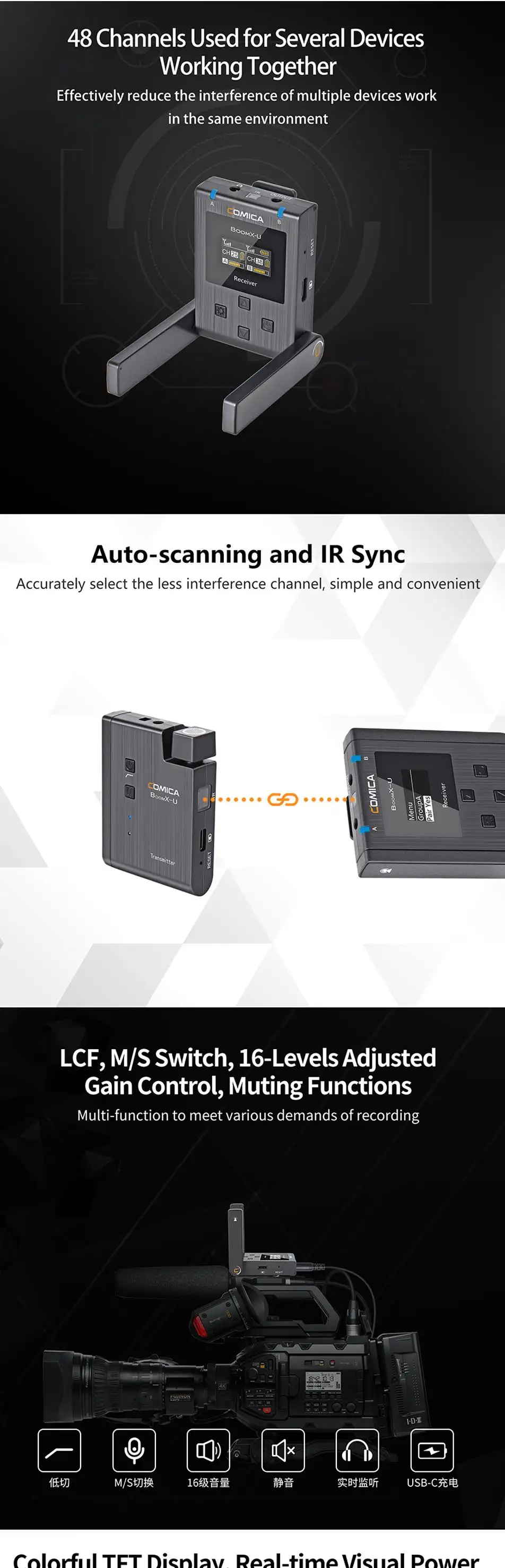

. Multi-Receiver Monitoring & Shooting. Internal and External Mic Two Input Modes. Working Distance is Up to 120m. 48 Channels Used for Several Devices Working Together. Auto-scanning for Quick Channel Selection. LCF, M/S Switch, 16-Levels Adjusted Gain Control, Muting Functions. Real-time Visual Power and Audio Dynamic Monitor. Special Anti-loose Design for External Lavalier Mic. Colorful TFT Display, High Resolution
. Support Screen Flip
. Designed with Multi-functional Belt Clip and Compact
Notice
.Please make sure the IR sensor are closely aligned when pairing
.Don't block the antenna position to avoid any poor signal generated
.Please attention that it can not realize STEREO function when in one-trigger-one mode
.It is recommended to keep a distance more than one meter between the two transmitters when using IR sync function, or it is easy to cause mismatching.This product belongs to high-precision instruments, please avoid falling, collision or pounding.Do not use this equipment in the vicinity of heat source or interference source, such as radiator, oven, WIFI AP, intercom or next to the other wireless devices.If the pick-up distance is close or when used outdoors, please put on the wind mu to prevent sound burst or reduce wind noise.Do not use the equipment in rain or in a damp environment to avoid short-circuit danger.Please keep the product in a dry environment

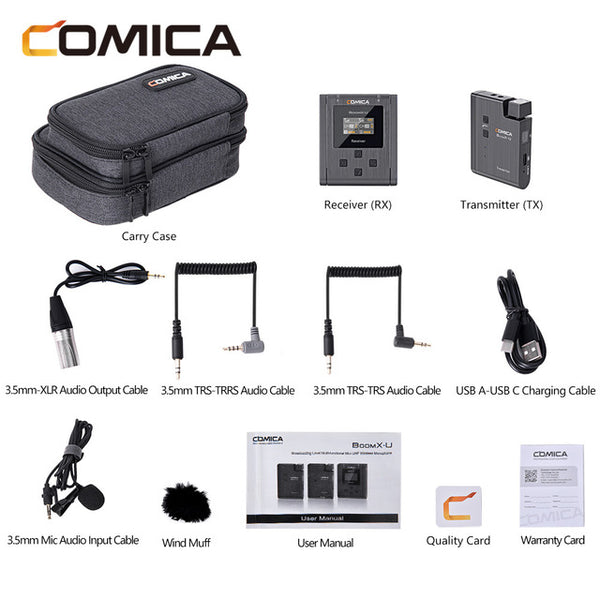

Packing List

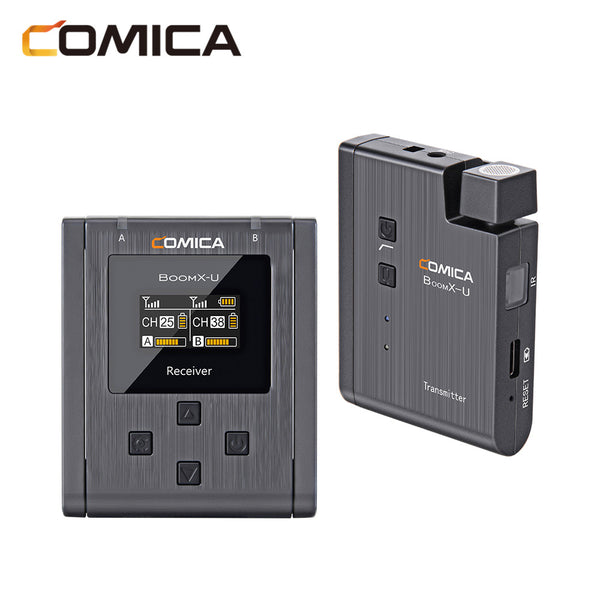

Main Parts:

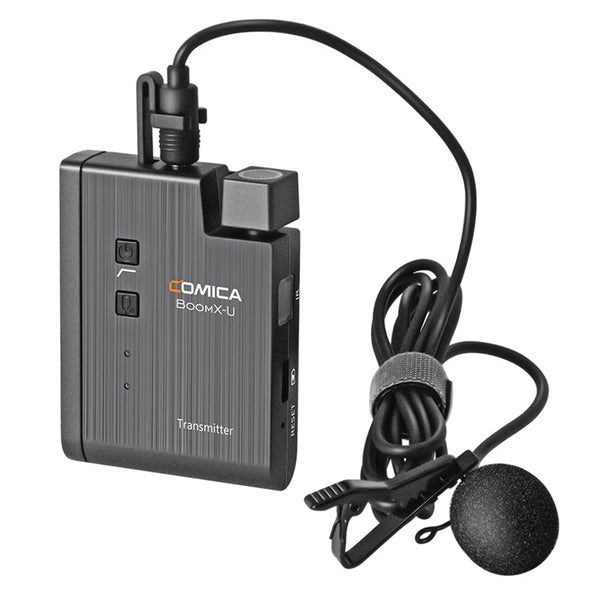

Transmitter(TX)

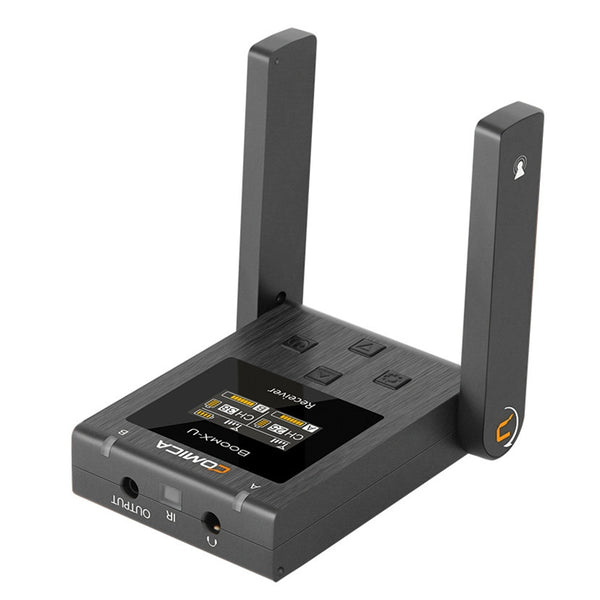

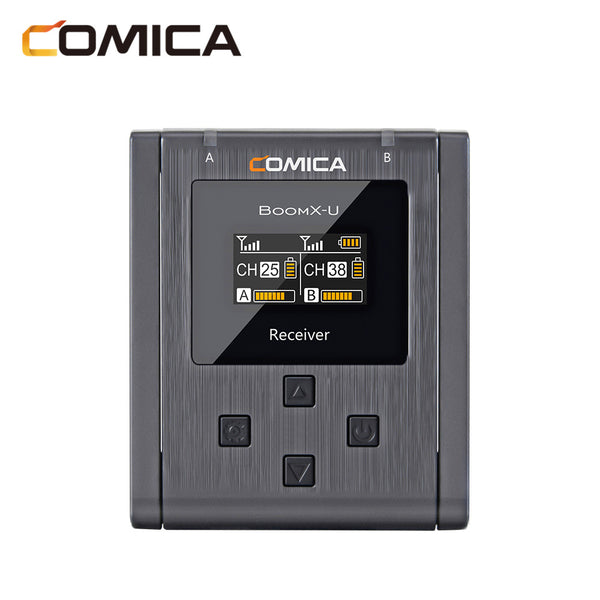

Receiver (RX)
Multiple Selections:
U1 = TX + RX

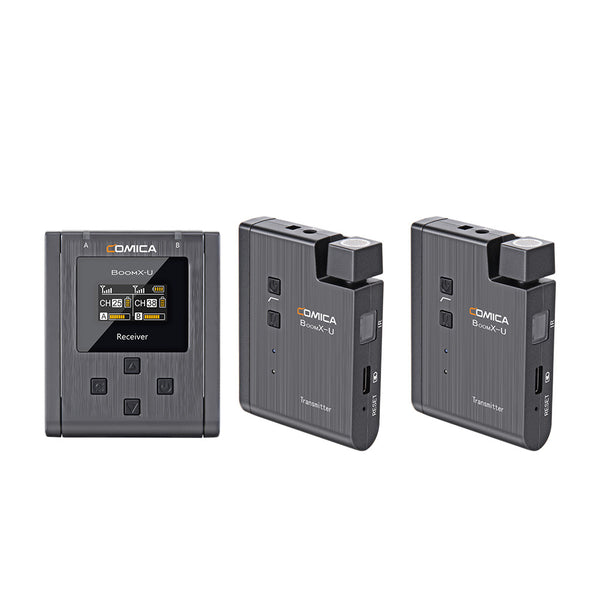

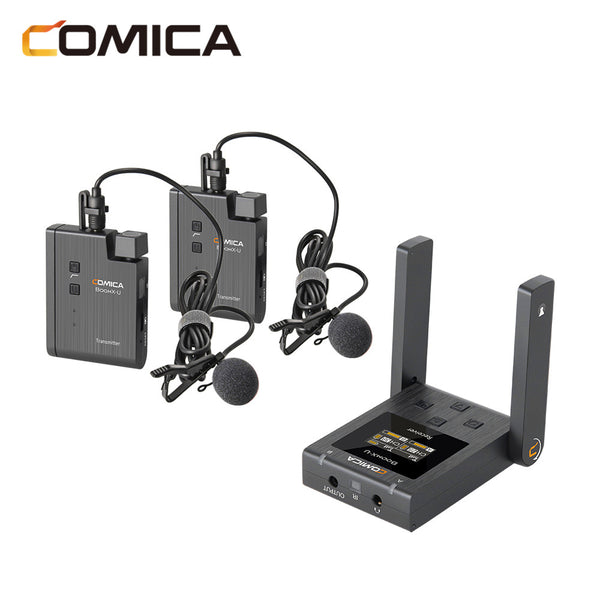

U2 = TX + TX + RX
Accessories:
1,3.5mm Mic Audio Input Cable
2,Wind Muff
3,3.5mm TRS-TRRS Audio Cable
4,3.5mm TRS-TRS Audio Cable
5,3.5mm-XLR Audio Output Cable
6,USB A-USB C Charging Cable
7,Carry Case
8,User Manual
9,Warranty Card
The accessories of each combination include:
U1= 1+2+3+4+5+6+7+8+9
U2= 1x2+2x2+3+4+5+6+7+8+9
Specification

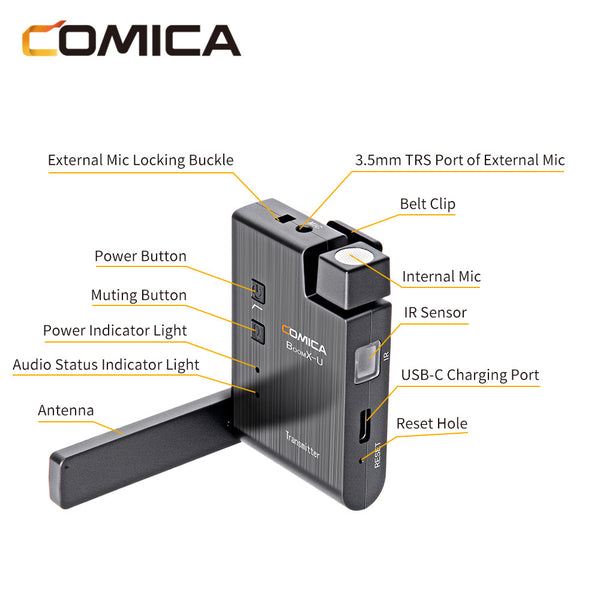

Transmitter (TX)
|
Antenna
|
PCB Antenna
|
|
Polar Pattern
|
Omnidirectional
|
|
Frequency Response
|
80Hz ~ 20kHz
|
|
Sound Delay
|
<20ms
|
|
External Mic Input Interface
|
3.5mm TRS
|
|
Battery
|
Li-ion Battery 600mAh 3.7V
|
|
Battery Life
|
6 Hours
|
|
Net Weight
|
47g
|
|
Dimension
|
49 x 22 x 66mm
|
|
Operating Temperature
|
0℃ ~ 50℃
|
|
Storage Temperature
|
-20℃ ~ 60℃
|

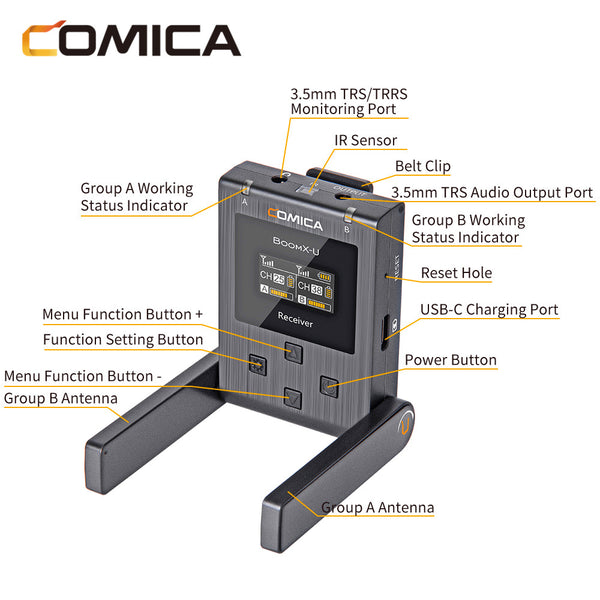

Receiver (RX)
|
Antenna
|
PCB Antenna
|
|
Receiving Sensitivity
|
-90dBm
|
|
Sound Delay
|
<20ms
|
|
External Mic Input Interface
|
3.5mm TRS
|
|
Monitor Interface
|
3.5mm TRS/TRRS
|
|
Battery
|
Li-ion Battery 600mAh 3.7V
|
|
Battery Life
|
6 Hours
|
|
Net Weight
|
55g
|
|
Dimension
|
49 x 22 x 66mm
|
|
Operating Temperature
|
0℃ ~ 50℃
|
|
Storage Temperature
|
-20℃ ~ 60℃
|
Technology Parameters
Transmitter (TX)
|
Channels
|
48
|
|
Group A Wireless Frequency
|
568.125MHz ~ 579.875MHz
|
|
Group B Wireless Frequency
|
568.125MHz ~ 579.875MHz
|
|
Transmitting Power
|
15dBm
|
Receiver (RX)
|
Channels
|
48
|
|
Group A Wireless Frequency
|
568.125MHz ~ 579.875MHz
|
|
Group B Wireless Frequency
|
568.125MHz ~ 579.875MHz
|
