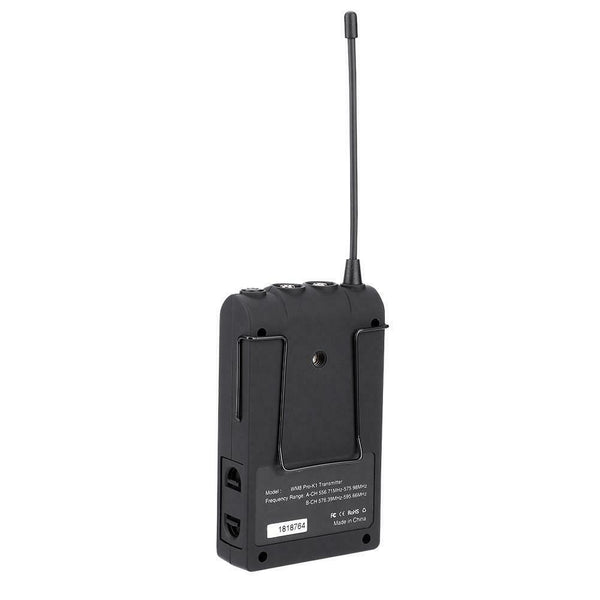

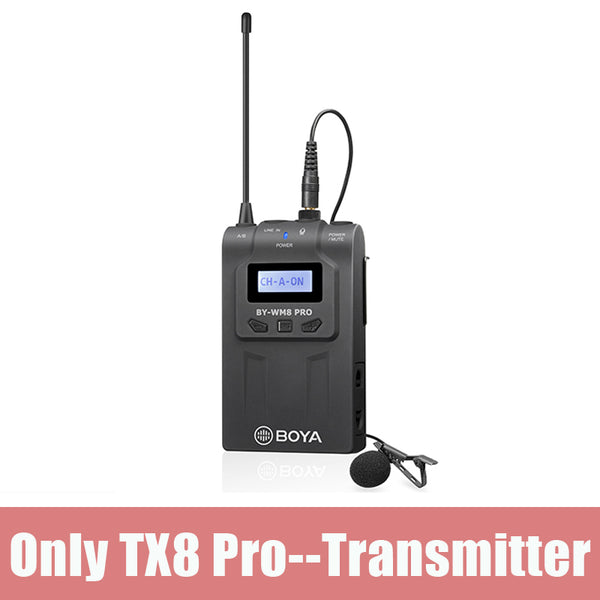

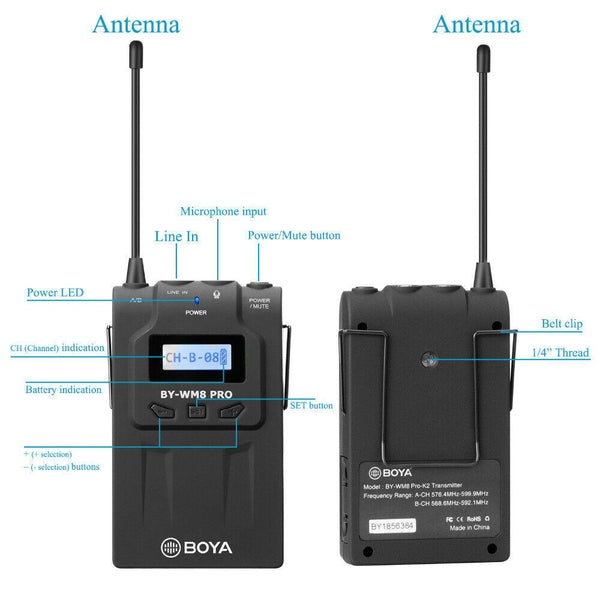

- TX8 Pro Overview：

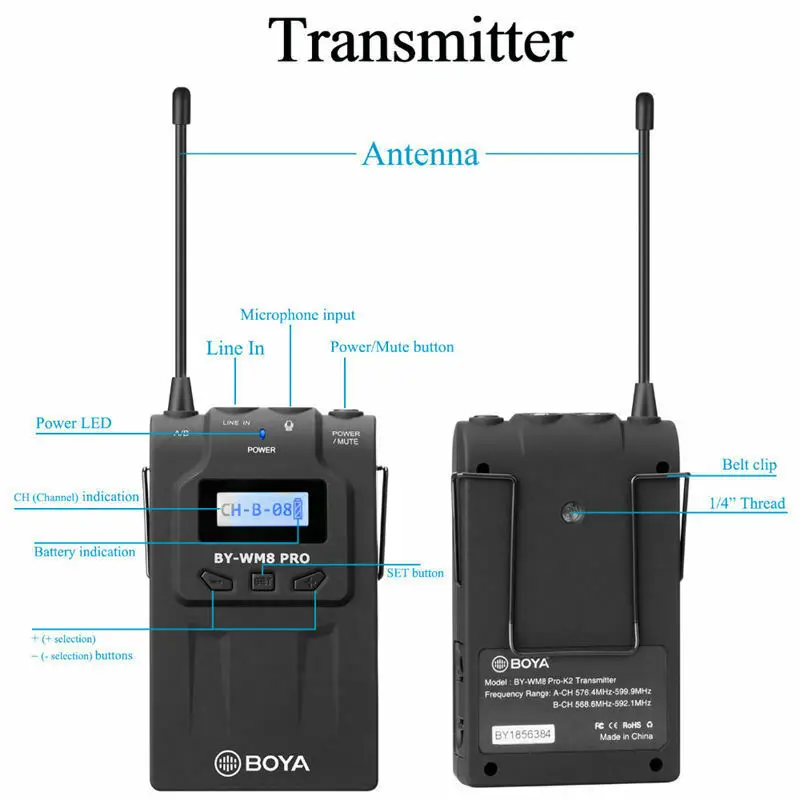

The BOYA TX8 Pro is a Digital Wireless Bodypack Transmitter with Lavalier Microphone,compatible with RX8 Pro and SP-RX8 Pro ( Receiver sold separately).
It features an easy to read LCD display, a wide switching RF bandwidth, one Mic input and one Line input, and digital circuitry,rugged lightweight plastic housing, and it’s suitable for DSLR cameras for videography,field recording, broadcast TV, and electronic news gathering (ENG) applications.
The unit features a MIC and LINE IN switch for standard wired microphone or line-level sources with adjustable attenuation.
The unit comes with an omnidirectional electret condenser lavalier microphone,a windscreen for the microphone, a microphone holder clip, and a belt clip.
- 48-Channel for supporting for more than two systems simultaneously
- UHF frequencies for interference-free reception
- 40 MHz bandwidth
- Equipped with a muting function
- Enables switching between MIC and LINE IN input sources
- Features a comprehensive LED display providing channel information, battery life
- Locked-plug Prevents Accidental Adjustment
- Includes Lavalier Microphone
-
Oscillator type: PLL Synthesized Control Oscillator Carrier Frequency Range: 556.71 MHz-575.98 MHz (Transmitter: A )
576.39 MHz-595.66MHz (Transmitter: B )Channels: 48 Frequency response: 40 Hz to 18 kHz (+/-3dB) Operation range: 100m (300')(without obstacle) RF output power ≤10mW Antenna: 1/4λ wire antenna Spurious emission 250nW or less Audio input connector 3.5mm mini jack Reference Audio input level: -60dBV(MIC input,0 dB attenuation) Reference deviation ±5kHz(-60 dBV,1 kHz input) Input frequency range 20Hz-20KHZ Distortion 0.5% or less Power supply Two AA size batteries
Operation time: About 6 hours Dimensions: 208(H) × 67(W) × 29(L)mm Weight: 90g without batteries

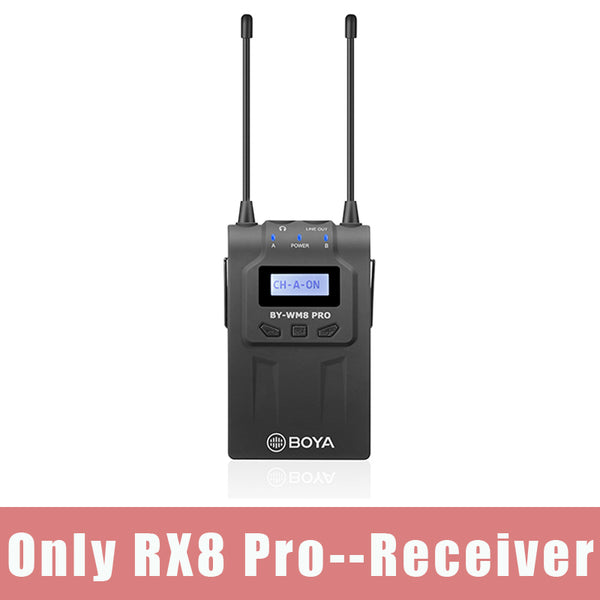

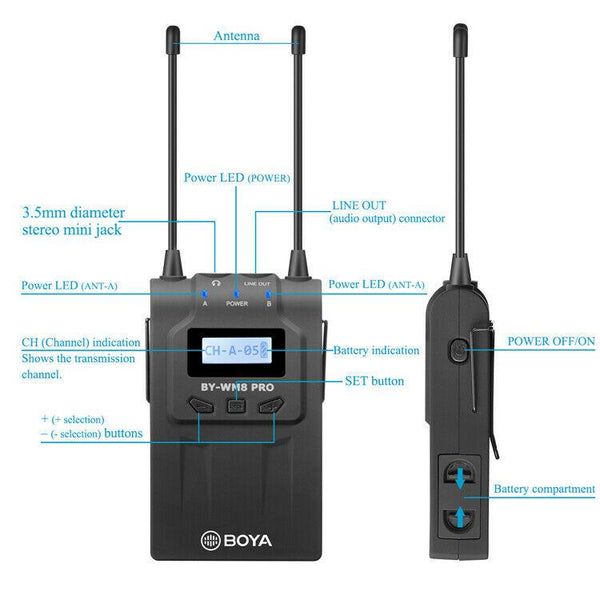

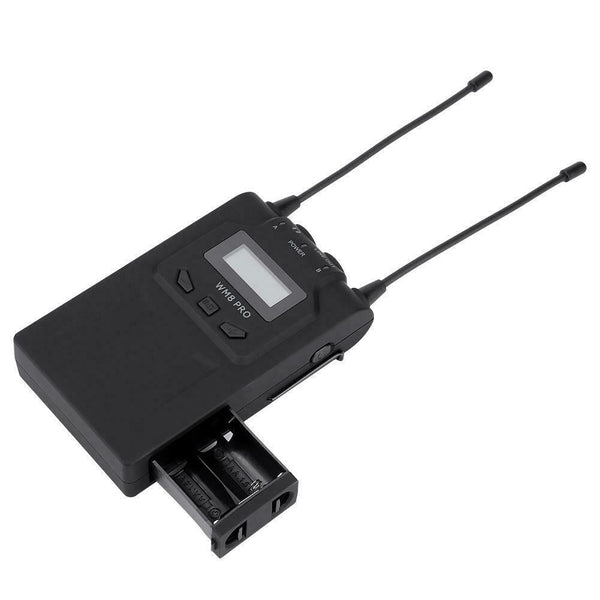

- RX8 Pro Overview：

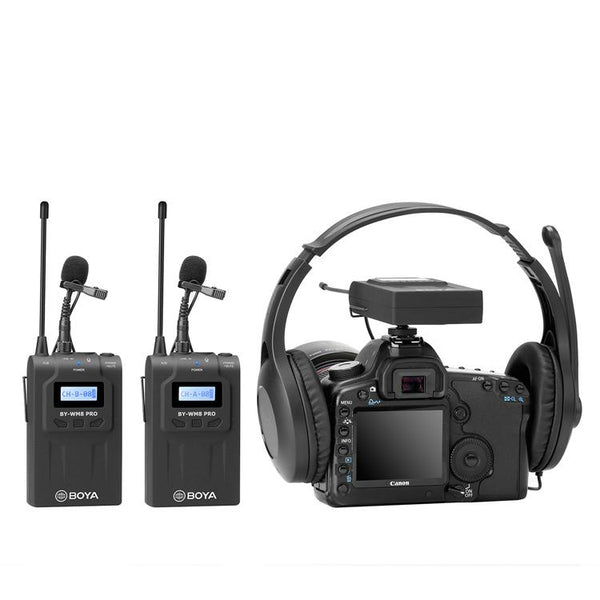

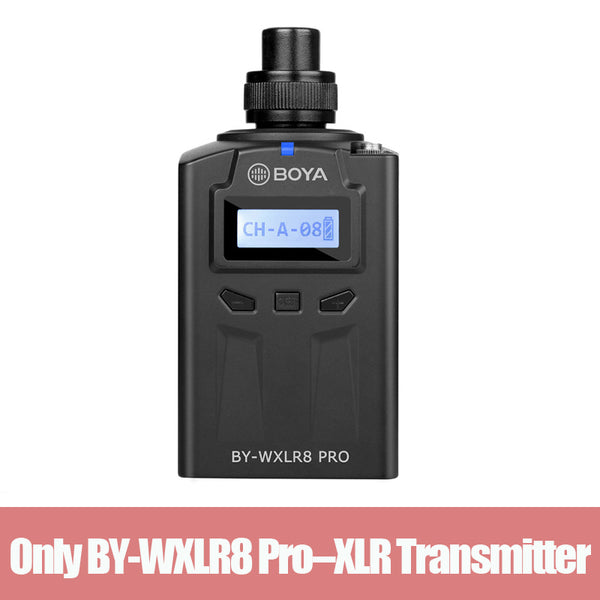

The BOYA RX8 Pro is a compact and rugged beltpack audio receiver. With two channels design, it can work with two transmitters simultaneously,it’s compatible with BOYA TX8 Pro, BY-WHM8 Pro and BY-WXLR8 Pro ( Transmitter sold separately).
Adjustable the volume and two-mode (MONO, Stereo), it can be used in various environments for audio applications such as live stage, theater, houses of worship, and more.

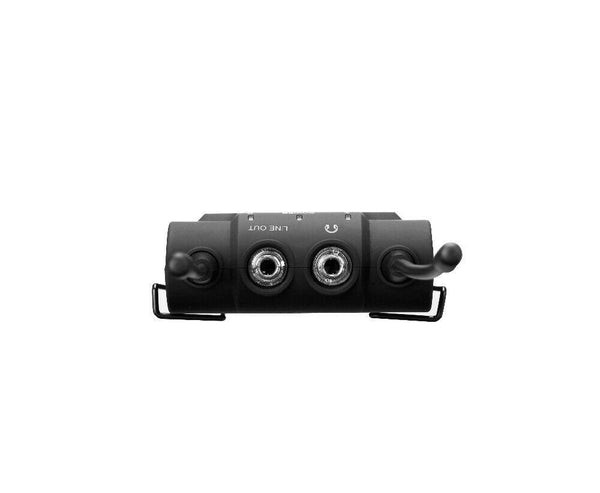

For outputs, the receiver features both a phone output for earphone monitoring as well as an output for connecting to the input of a camera with the included stereo mini cable.

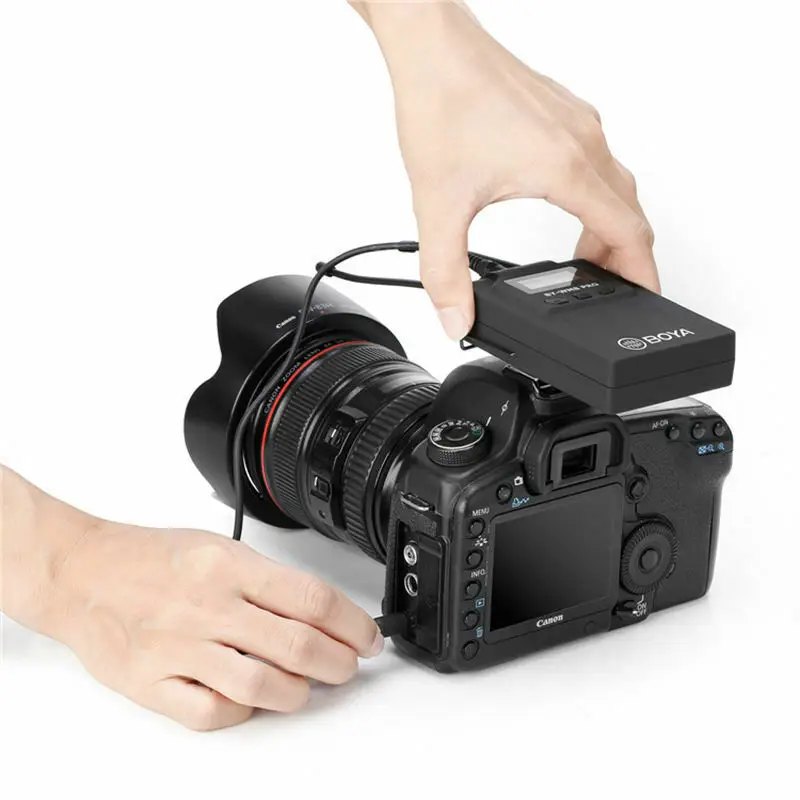

An optional stereo to dual XLR cable is available for connecting to a professional camera.The unit also comes with a shoe mount and locking adhesive strips for attaching to a camera or camcorder.
The beltpack can be wirelessly synced with the transmitter for quick setup,and also offers simple menu operation with an illuminated graphic display for more control options.
- UHF frequencies for interference-free operation
- Dual-Channel
- User-friendly menu for simple operation

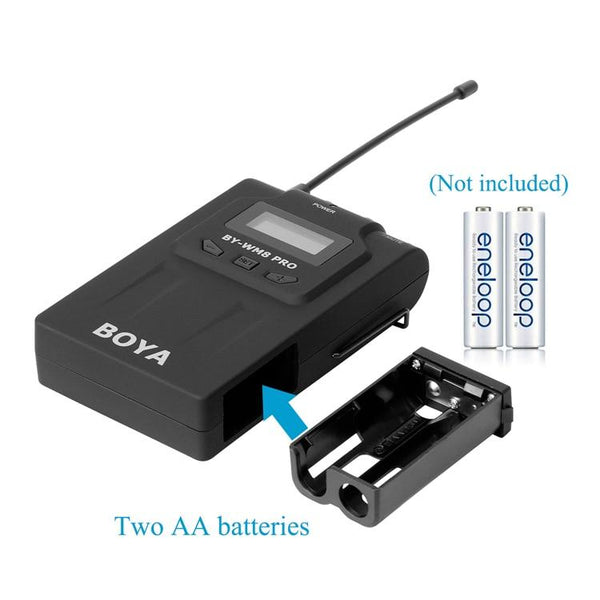

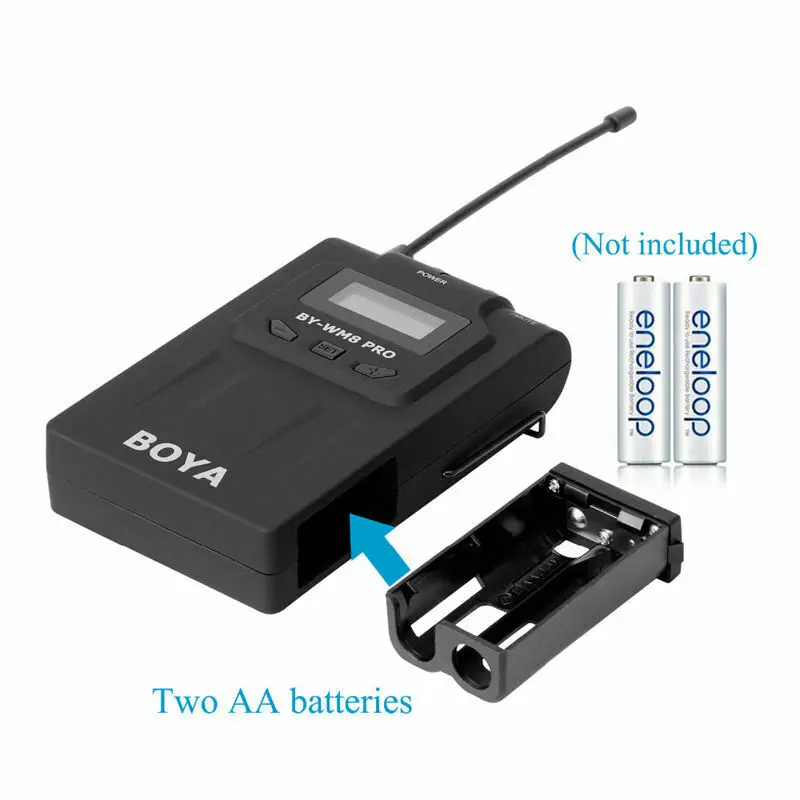

- Operates on 2 AA batteries
- Includes 3.5mm locked-plug audio cable
- A 3.5mm headphone jack for real-time monitoring
- Includes shoe mount
- Compact and rugged lightweight plastic housing

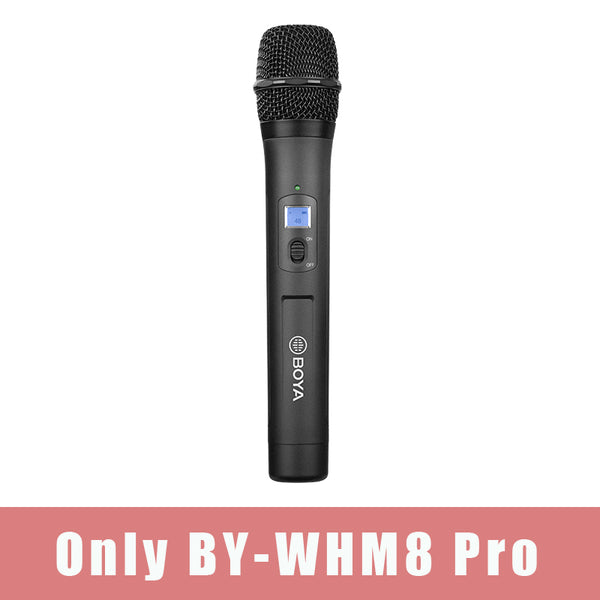

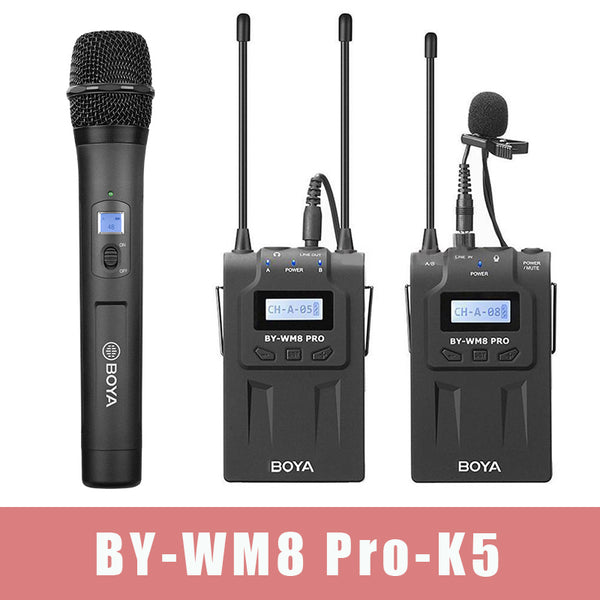

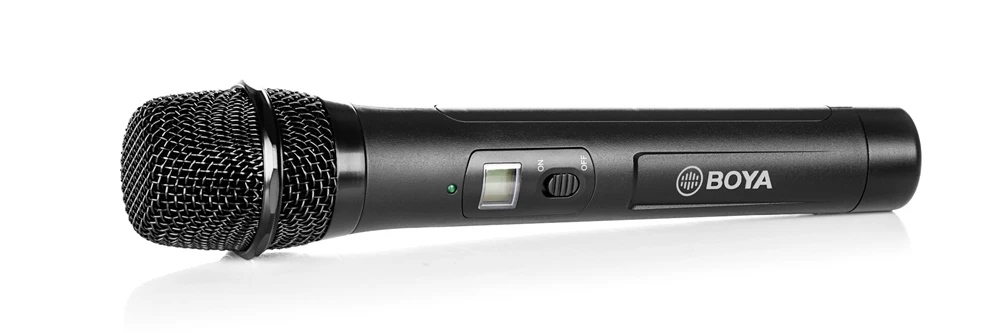

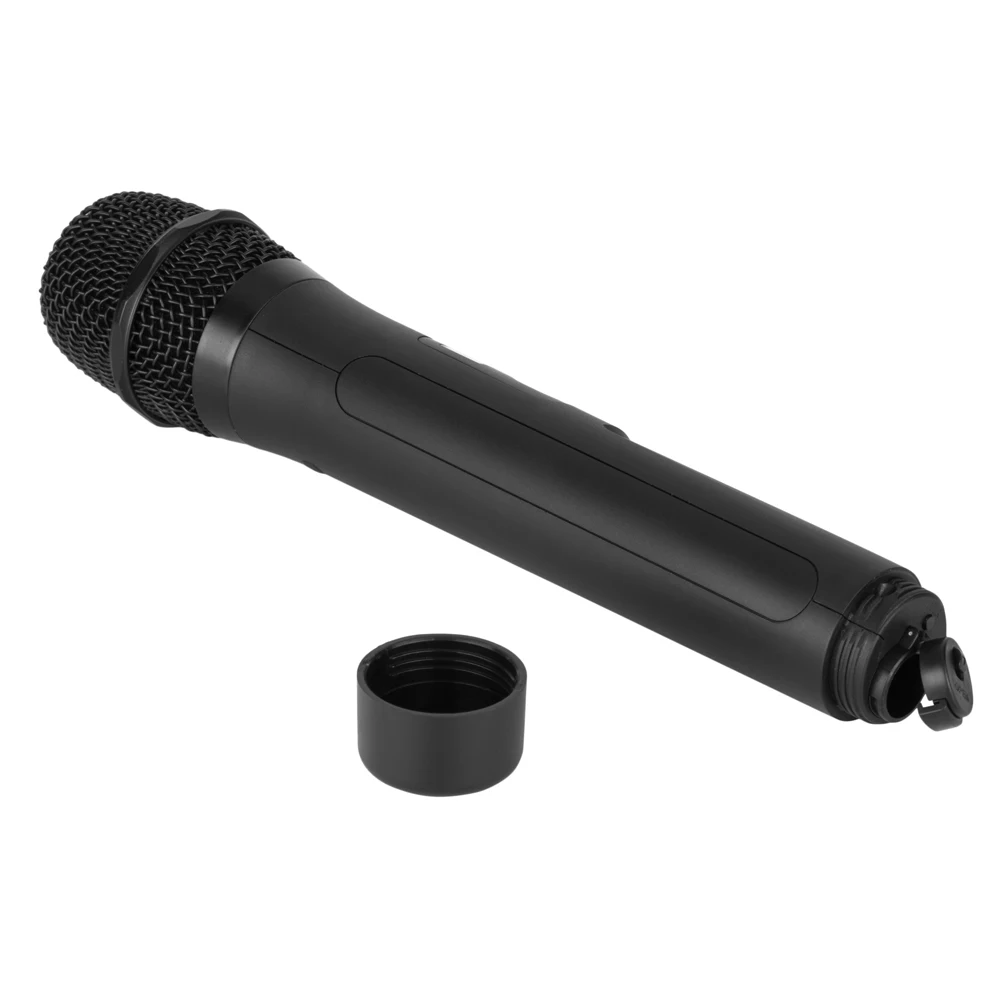

- BY-WHM8 Pro Overview：

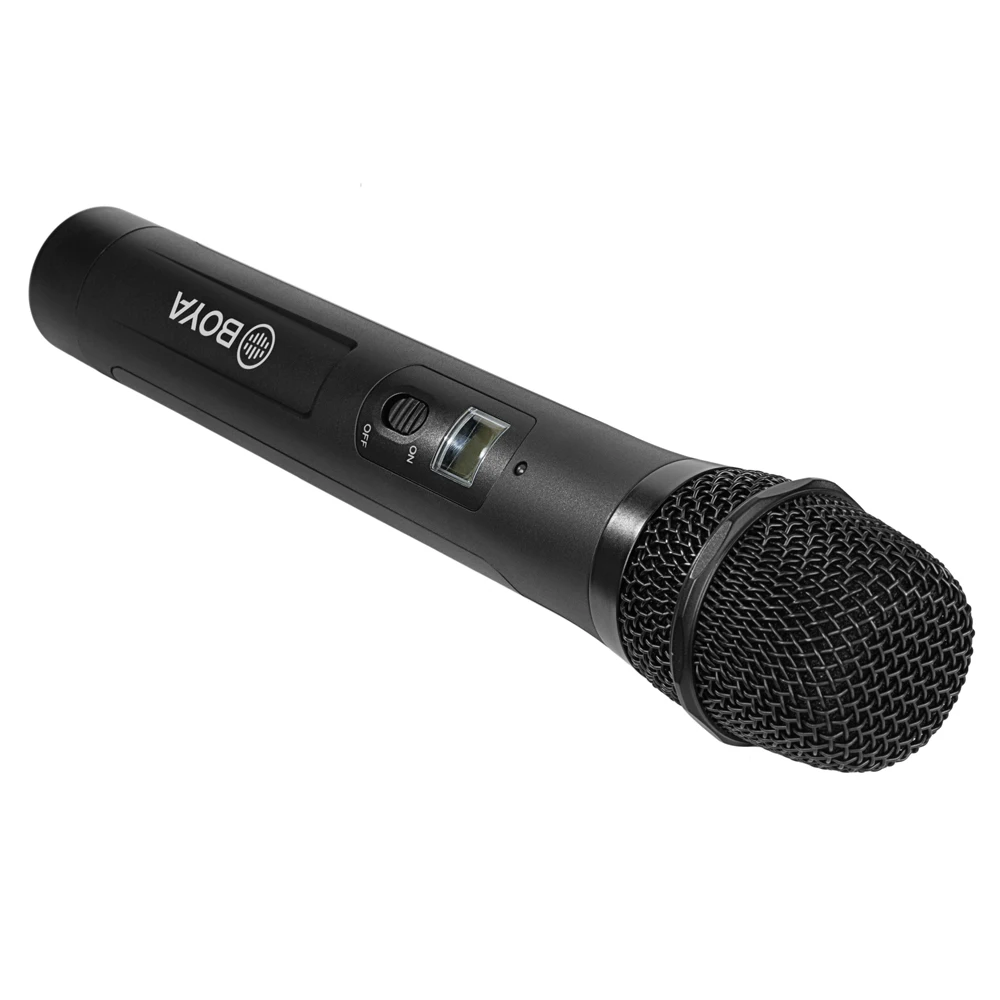

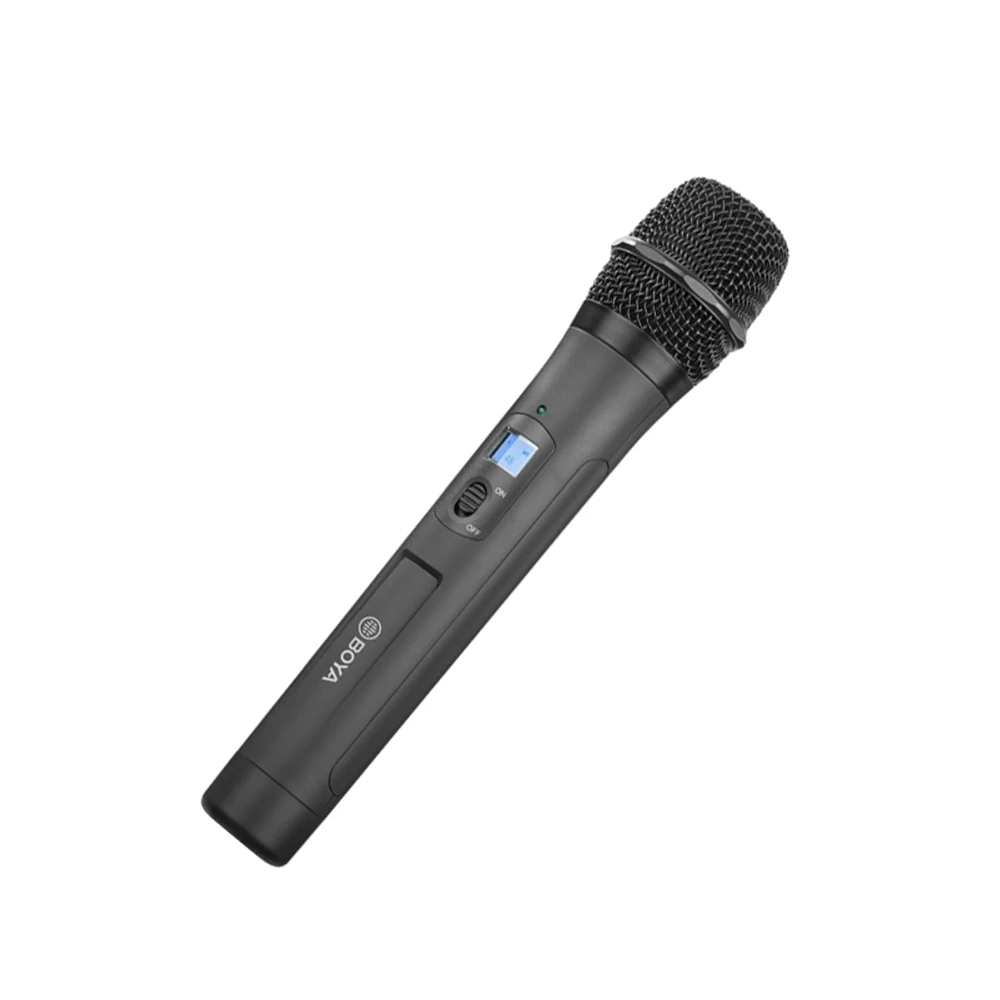

The BOYA BY-WHM8 Pro is a Wireless handheld transmitter with a dynamic, cardioid capsule, suitable for BOYA RX8 Pro and SP-RX8 Pro wireless receiver. The BOYA BY-WHM8 Pro provides professional, portable wireless operation in the 24MHz band,is easy to operate and affordable. It features an easy to read LCD display, easy one-touch channel search and lightweight housing.
- Ideal for broadcasting, live streaming, presentations, and mor
- UHF frequencies for interference-free reception
- It features an OLED display with information on level, battery status, mute, and channel selection.
- 24 MHz bandwidth
- Power the transmitter via AA batteries, rechargeable NiMH batteries.
- The pilot tone control enables you to maintain the integrity of your audio and avoid bothersome interference
- Compatible with RX8 Pro and SP-RX8 Pro
- User-friendly menu operation with more control options
| Microphone unit: | Dynamic |
| Directivity: | Unidirectional |
| Channel group: | A or B |
| Carrier Frequency Range: |
576.4 MHz-599.9 MHz (Channel group: A ) 568.6 MHz-592.1 MHz (Channel group: B ) |
| Channels: | 48 |
| RF output power: | ≤10 mW |
| Input frequency range: | 20Hz-20KHz |
| Distortion: | 0.5% or less |
| Signal-to-noise ratio: | 80 dB |
| Dimensions: | 5.3x5.3x25.6cm |
| Weight: |
252g (without batteries) |

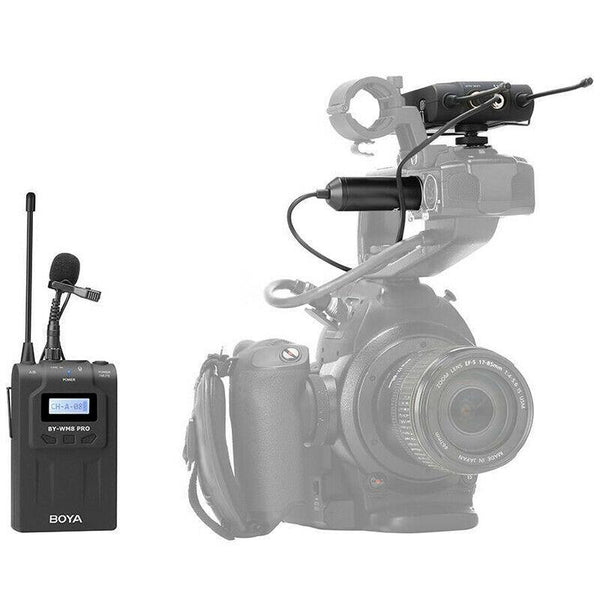

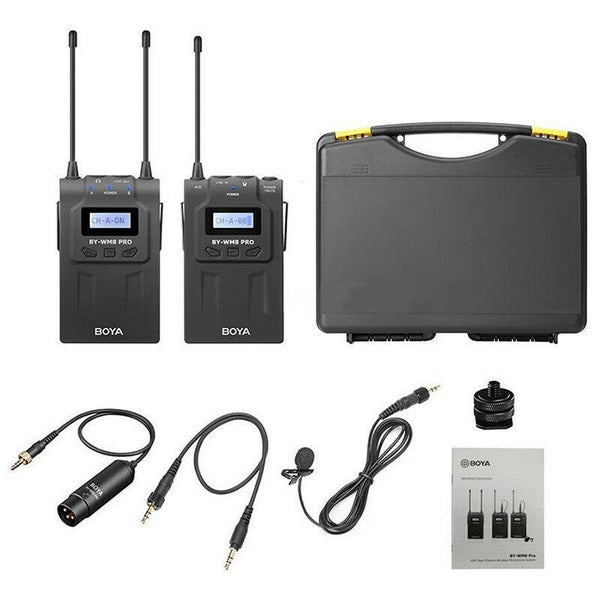

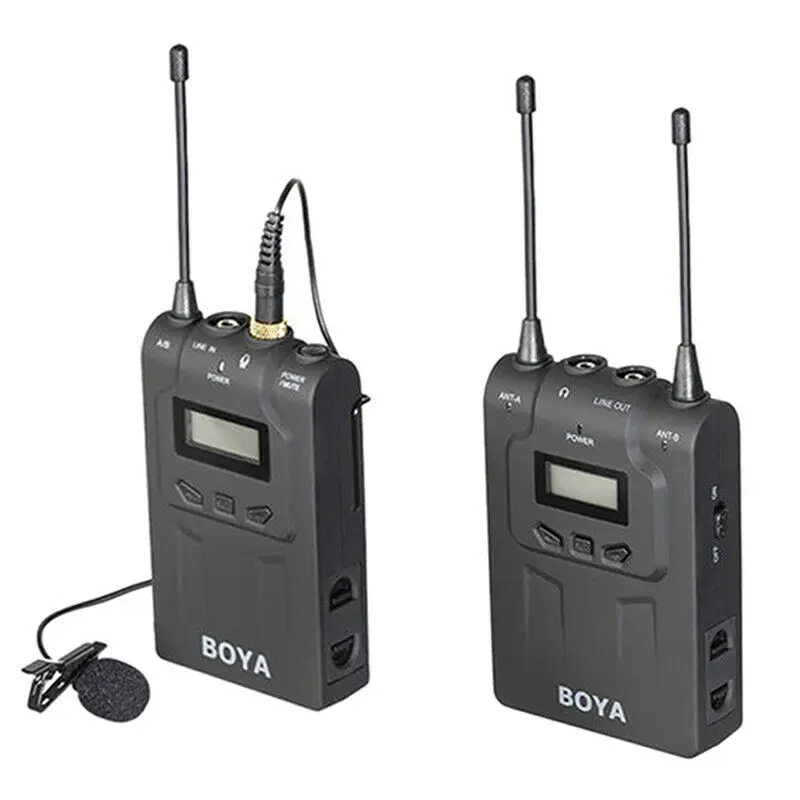

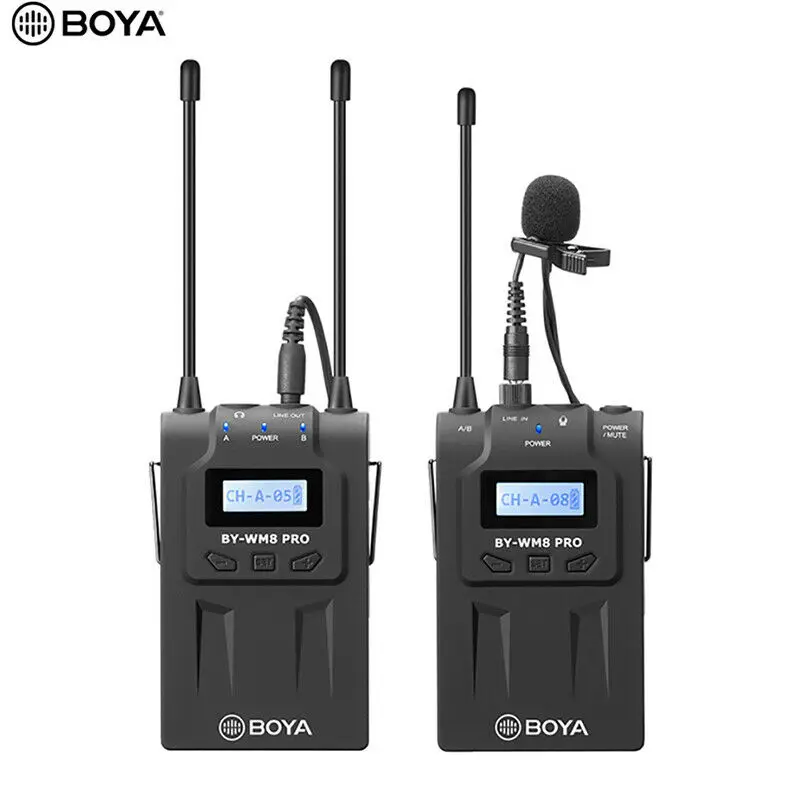

BY-WM8 Pro K1 Package List:
1 * Transmitter
1 * Receiver
1 * Microphone
1 * 3.5mm audio cable
1 * XLR Cable
1 * Microphone Holder Clip
1 * Wind Screen
1 * Shoe Mount Adapter
1 * Carry Case
1 * Users' Manual(English)

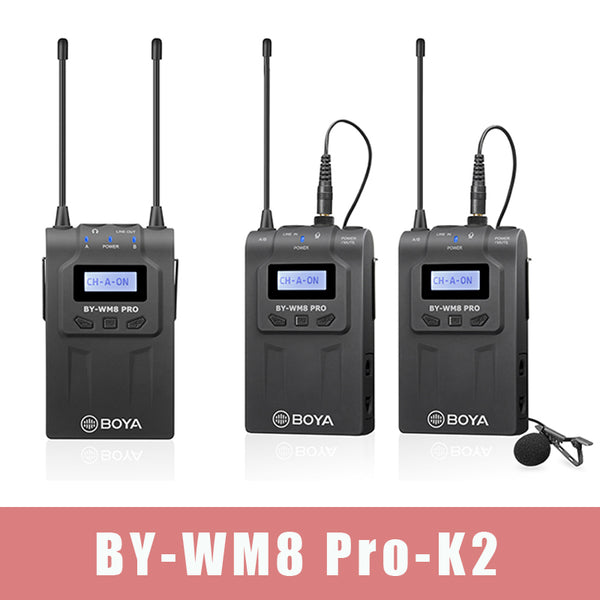

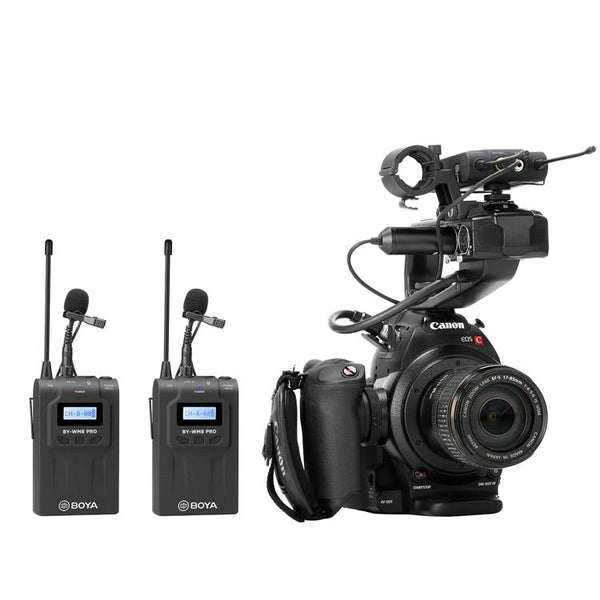

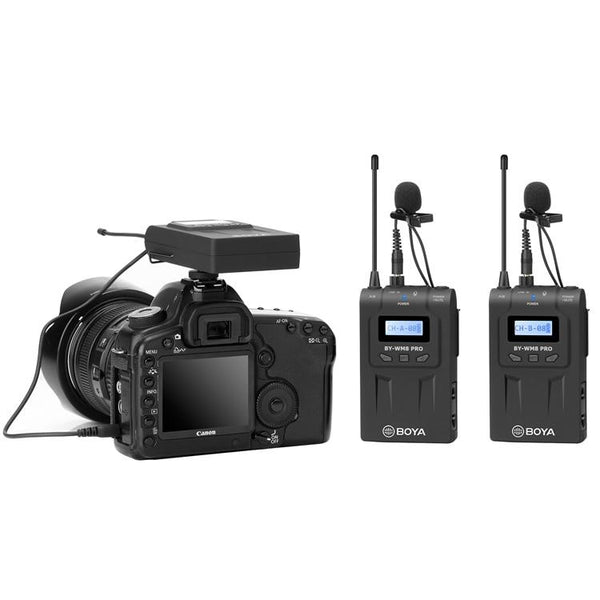

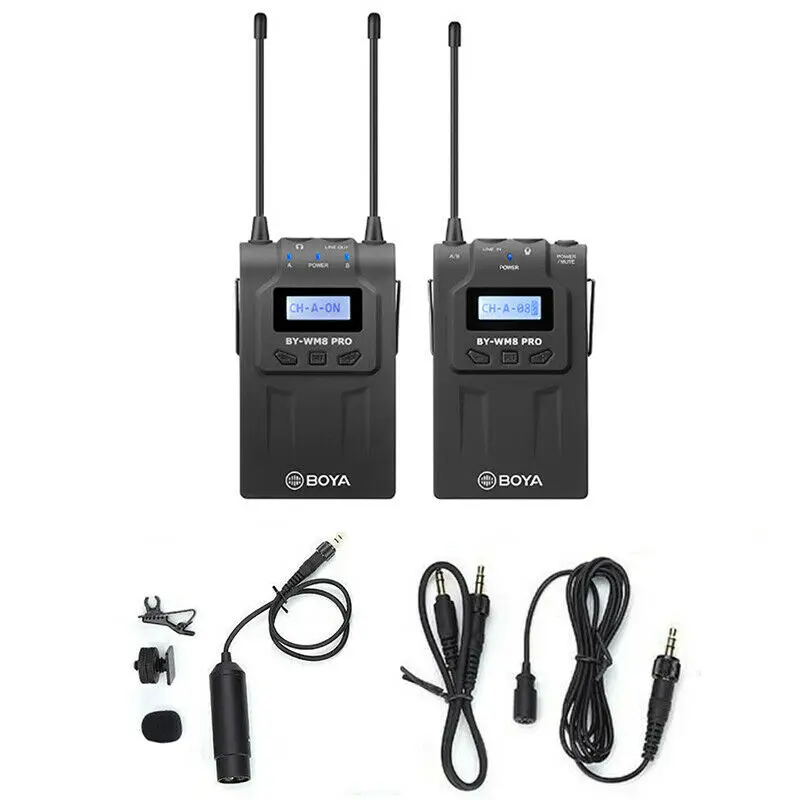

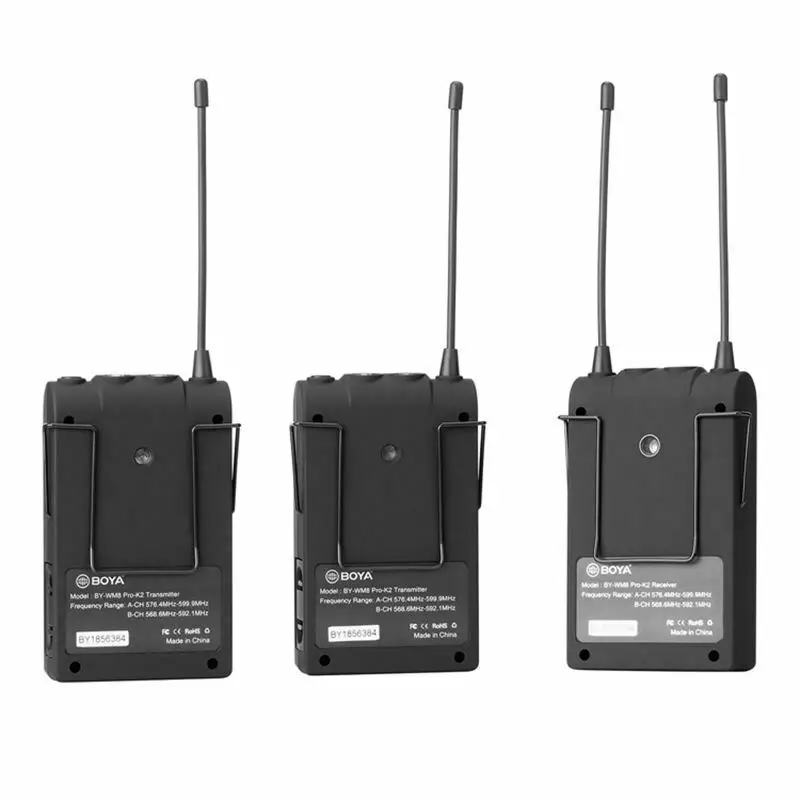

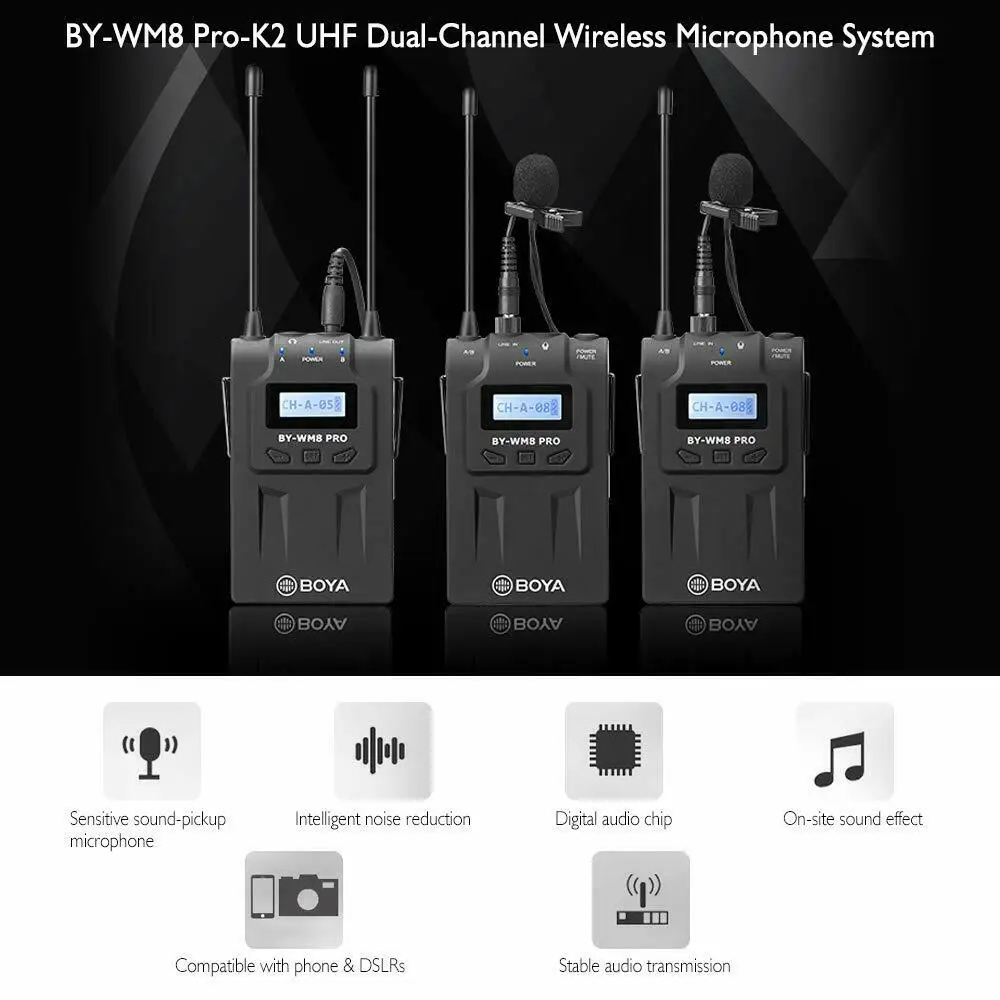

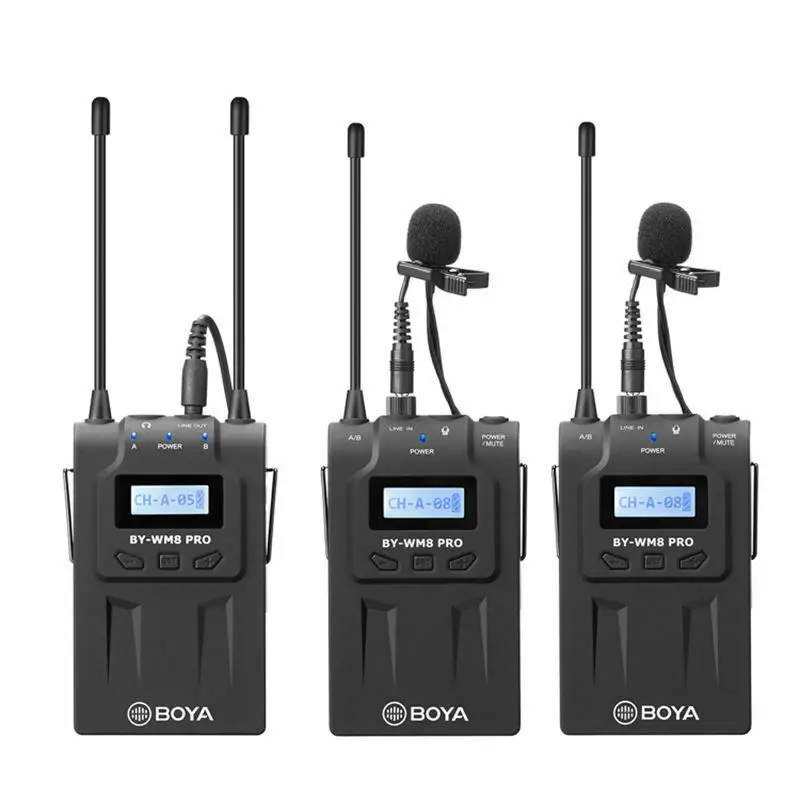

BY-WM8 Pro K2 Package List:
1 * Dual Channel Wireless Receiver
2 * Wireless Transmitter
2 * Omnidirectional Lavalier Microphone
2 * Foam Windscreen
2 * Lapel Holder Clip
2 * Belt Clip
1 * Stereo 3.5mm mini Plug Output Cable
1 * XLR Output Cable
1 * Product Mannual
1 * Carry Case

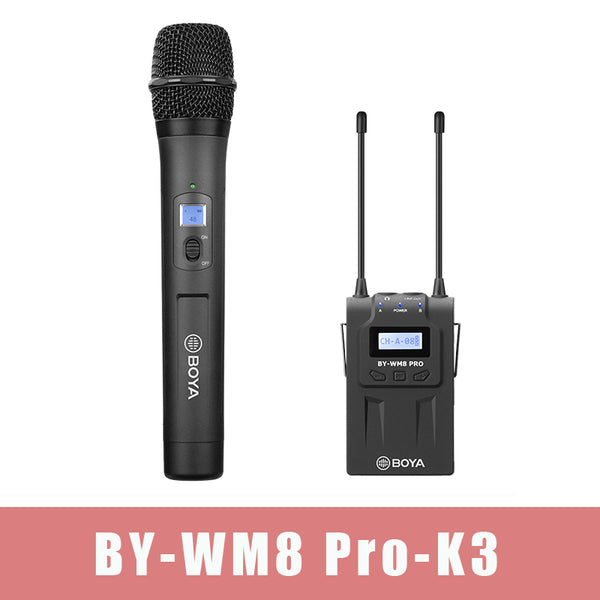

BY-WM8 Pro K3 Package List:
1 * Microphone
1 * Microphone Pouch
1 * Microphone User Manual (English)
1 * Bodypack Transmitter
1 * Belt Clip
1 * 3.5mm output Cable
1 * XLR Output Cable
1 * Shoe Mount Adapter
