BY-M1000
Large Diaphragm Condenser Microphone
• Gold-sputtered diaphragm• Broadcast-quality condenser microphone• Cardioid, Omnidirectional and Bidirectional polar patterns• Wide frequency range and ultra low noise• Off-axis rejection for clean recordings• Included shockmount & pop filter• Controlled by low-cut filter switch• 0dB ,-10 dB Pad switch• Electrically balanced output• 3-Pin XLR plug• 24V or 48V phantom power• All-metal housing• Included 3/8" and 5/8" thread
Overview:
• The BOYA BY-M1000is a 34mm(1.3") diaphragm condenser microphone,with sturdy all-metal housing,three selectable polar patterns, -10dB switch design• BOYA BY-M1000 is suited for capturinginstruments and vocals in project and professional recording applications,such as singer, songwriters, podcasters, voiceover artists,field recorders, and home studio recordings.Additionally,the microphoneoffers a 20 Hz to 20 kHz frequency response for accurately reproducing audio signal in a variety of ranges.• The microphone uses standard 24V or 48V phantom power, which is supplied through the standard XLR connector.
Note: The arm stand is not included.

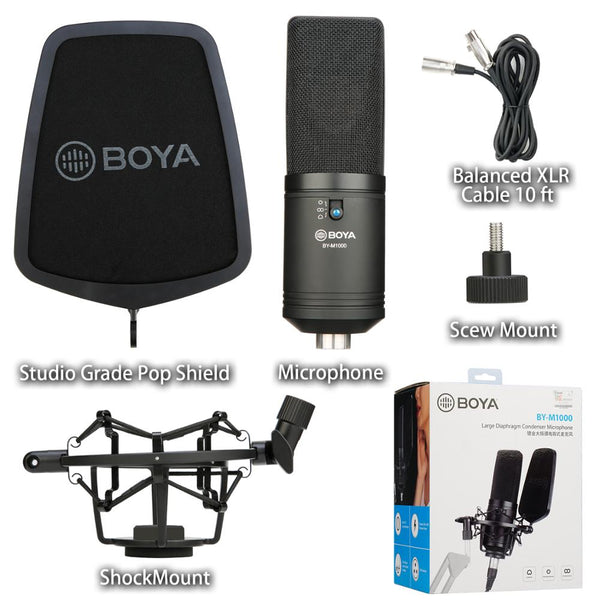

Package List:
1 * BY-M1000 Condenser Microphone
1 * Studio-grade Pop Shield
1 * Shockmount
1 * Rubber Band
1 * 3m(10ft) Balanced XLR Cable
1 * User Manual(English)
Specifications:
Acoustic Principle: | Condenser |
Polar Pattern: | Cardioid, Omnidirectional, Bidirectional |
Diaphragm: | 34mm(1.3") |
Frequency Response: | 20– 20,000Hz |
SN: | 80dB and more |
Output Impedance: | 200 Ohm |
Power Requirement: | 24V or 48V Phantom |
Cable Length: | 3m(10ft) |
Dimensions: | 207 x 115 x 185mm(8.1” x 4.5” x 7.3”) |
Weight: | 812g (29 oz) |
