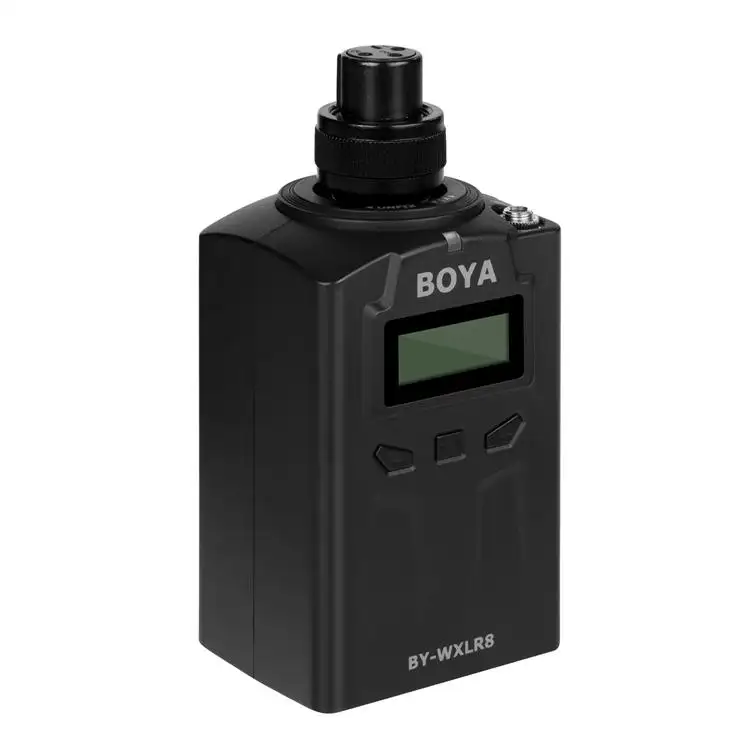

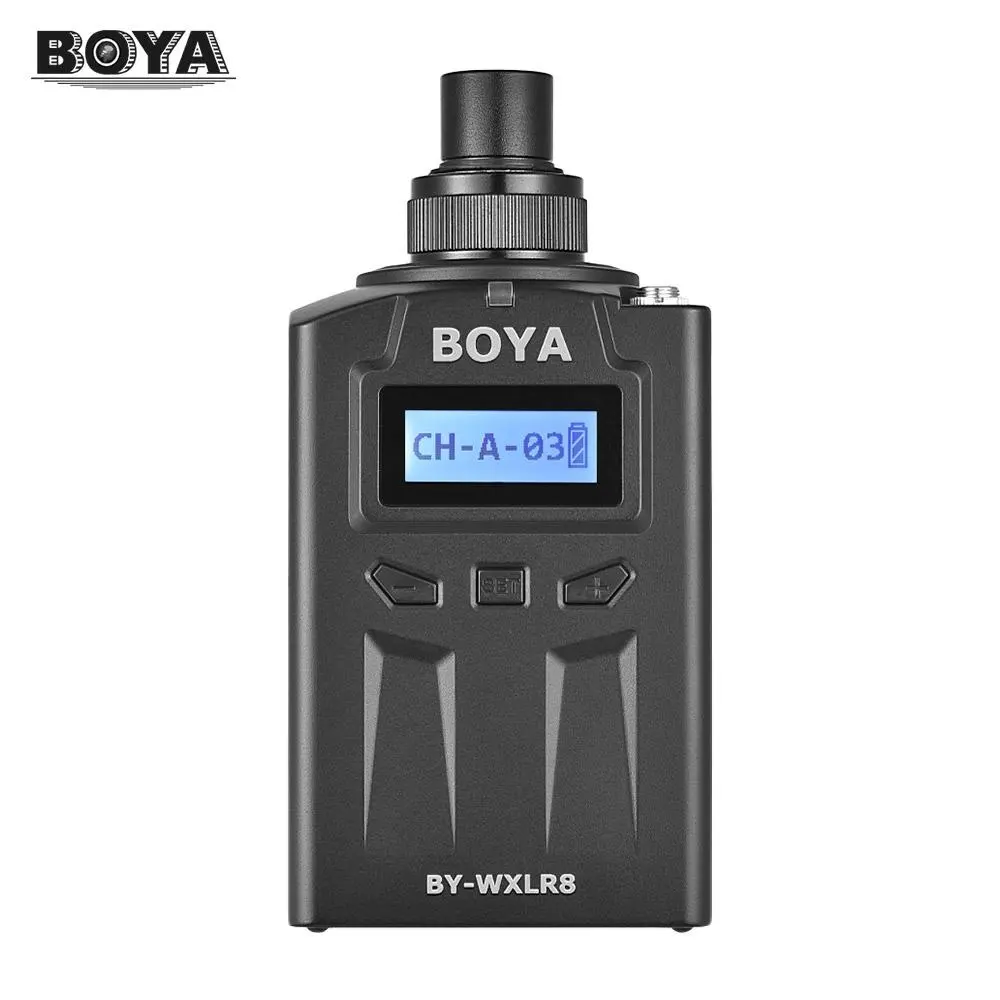

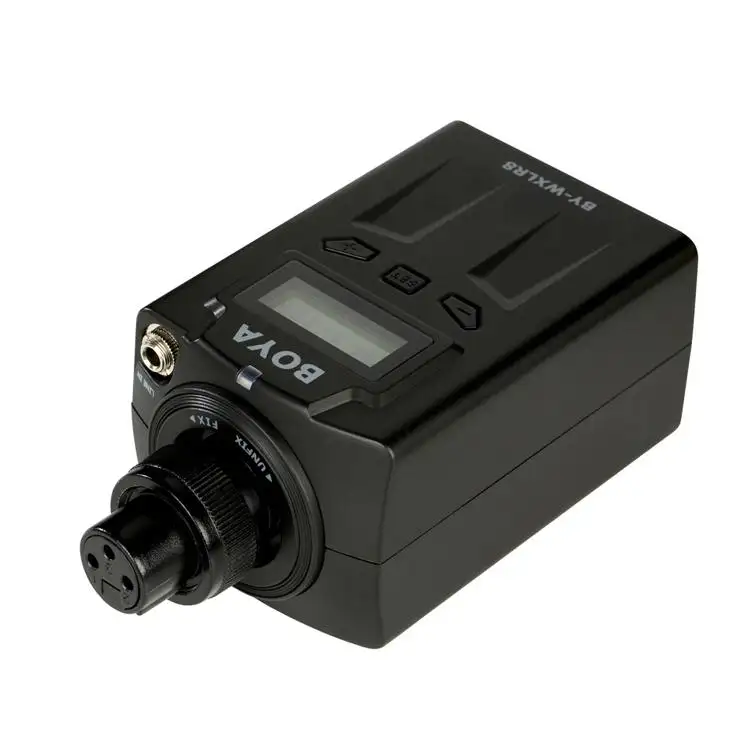

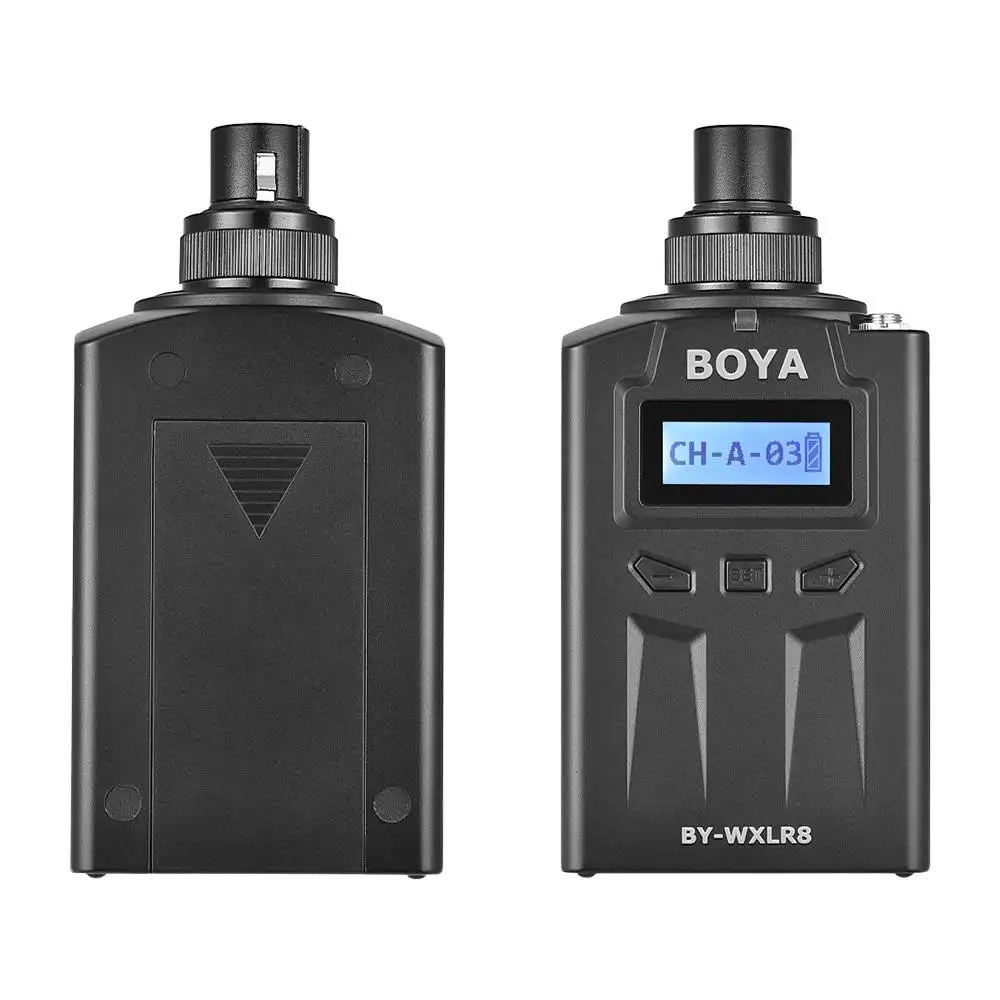

BOYA BY-WXLR8 Plug-on XLR Audio Transmitter with LCD Display for BY-WM8 BY-WM6 Wireless Lavalier Microphone System
UHF Wireless XLR Transmitter
Product Highlights:
· UHF transmission with 48 channels
· A or B channel group for selection
· Compatible with BY-WM6 Receiver and BY-WM8 Receiver
· Auto-Lock Prevents Accidental Adjustment
· OLED Display

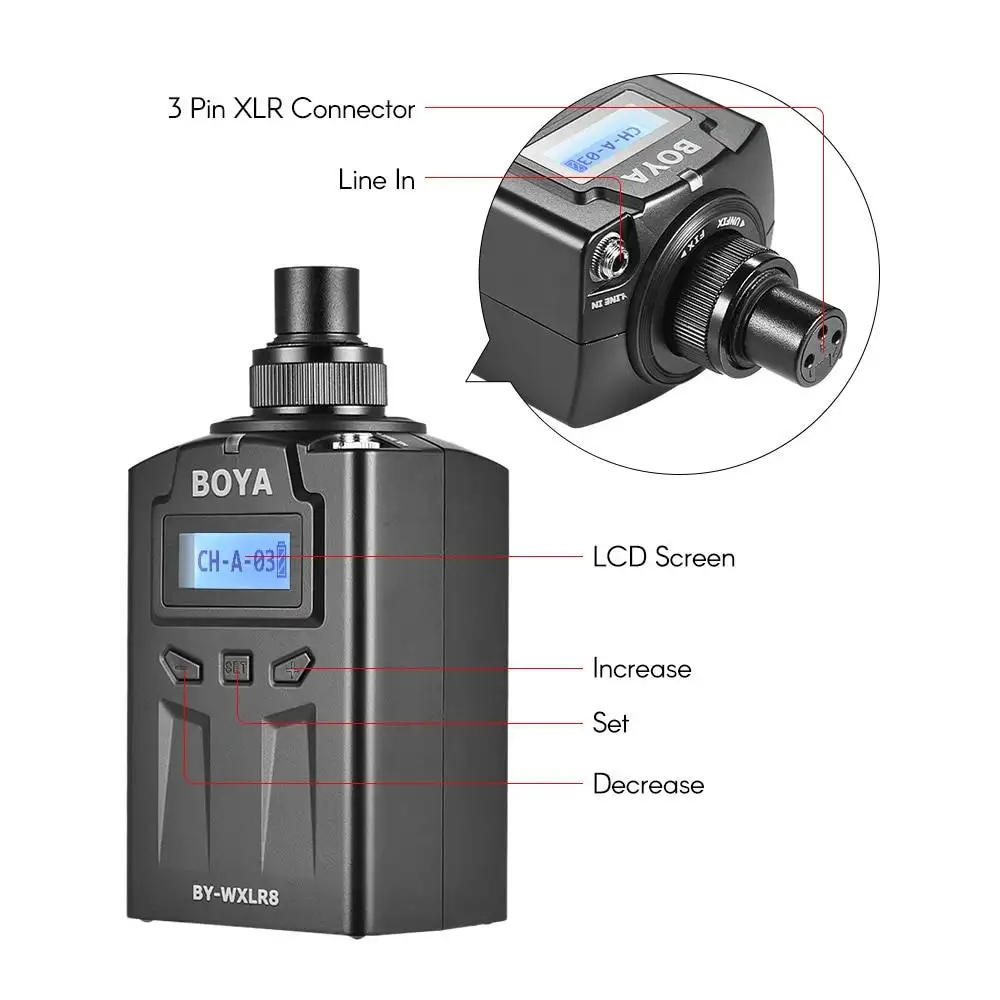

· Locking XLR & 3.5mm TRS Inputs
· Operation range can reach up to 100m
· Selectable Mic, Line Input, MIX Input

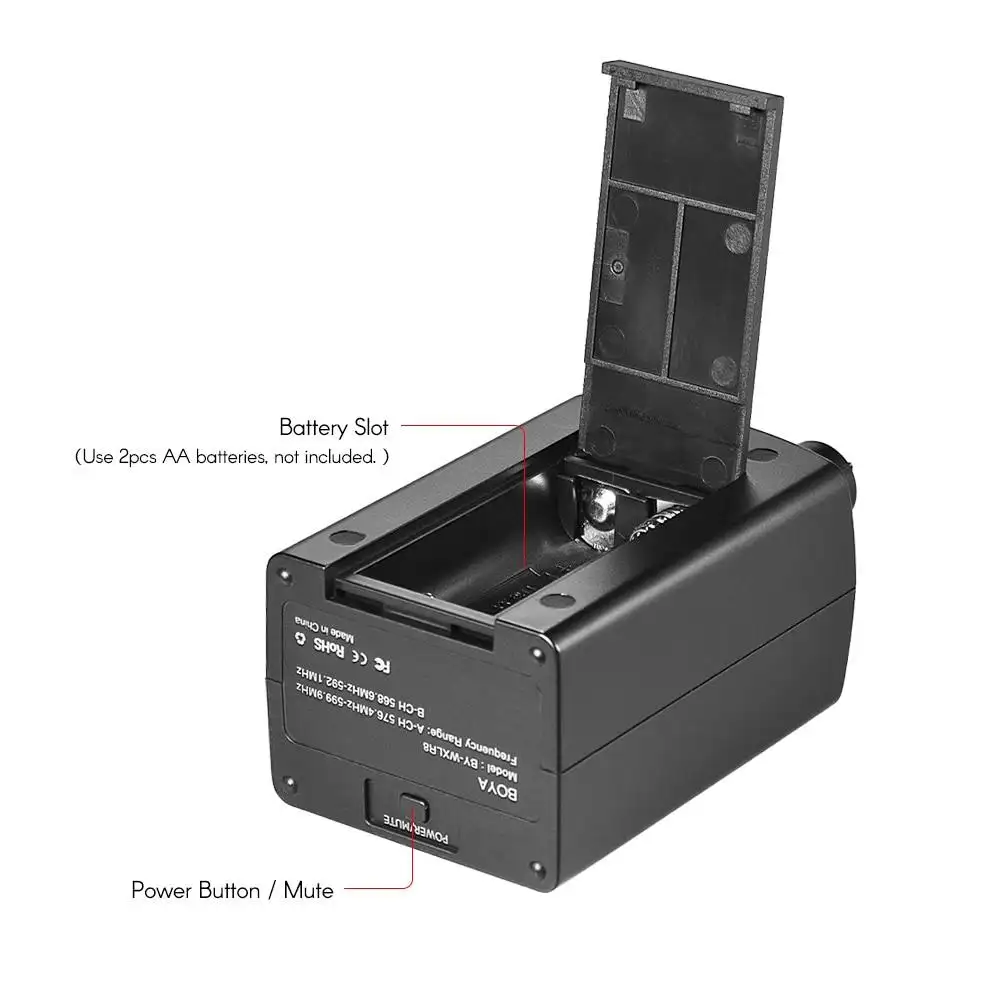

· Powered by one Two AA Batteries
TheBOYA BY-WXLR8 Plug-On XLR Transmitterfor BOYA BY-WM6 and BY-WM8 UHF Wireless Microphone System.
Allows you to connect any XLR microphone and the BY-WM6 and BY-WM8 wireless receiver.
It features an easy to read LCD display, a wide switching RF bandwidth, a Mic/Line/MIX switchable inputs,
and digital circuitry, Rugged reinforced construction, and it’s suitable for DSLR cameras for videography,
field recording, broadcast TV, and electronic news gathering (ENG) applications.
Allows you to connect any XLR microphone and the BY-WM6 and BY-WM8 wireless receiver.
It features an easy to read LCD display, a wide switching RF bandwidth, a Mic/Line/MIX switchable inputs,
and digital circuitry, Rugged reinforced construction, and it’s suitable for DSLR cameras for videography,
field recording, broadcast TV, and electronic news gathering (ENG) applications.
- UHF frequencies for interference-free reception
- A high-contrast OLED display offers a wider viewing angle than an LCD and is easy to see in low-light environments.
- It features an OLED display with information on level, battery status, mute, and channel selection.

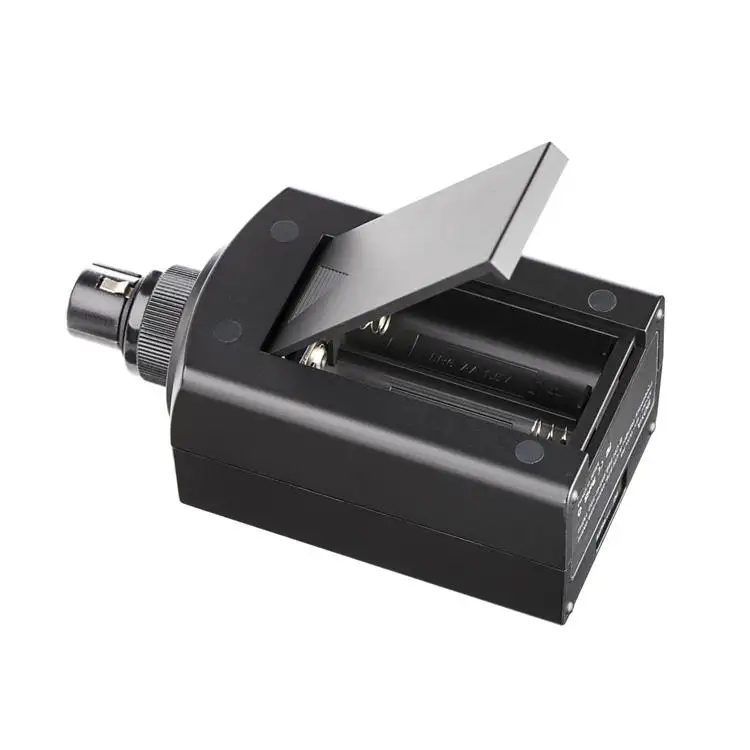

- Power the transmitter via AA batteries, rechargeable NiMH batteries.
- The pilot tone control enables you to maintain the integrity of your audio and avoid bothersome interference
- Programmable Mute function

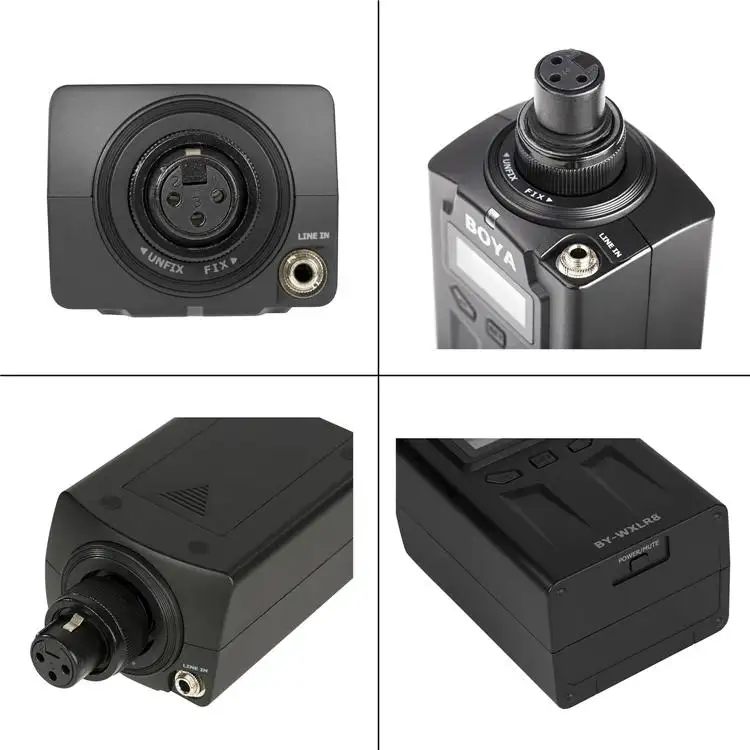

- Locked XLR plug and 3.5mm plug avoids accidental changing of settings
- Compatible with microphone supporting 3.5mm TRS or XLR connection points
- Wide range of accessories adapts the system to many requirements
Specifications：
| Channel group: | A or B |
| Carrier Frequency Range: | 576.4 MHz-599.9 MHz (Channel group: A ) 568.6 MHz-592.1 MHz (Channel group: B ) |
| RF output power: | ≤10 mW |
| Audio input connector: | XLR |
| Operation range: | 100m (300')(without obstacle) |

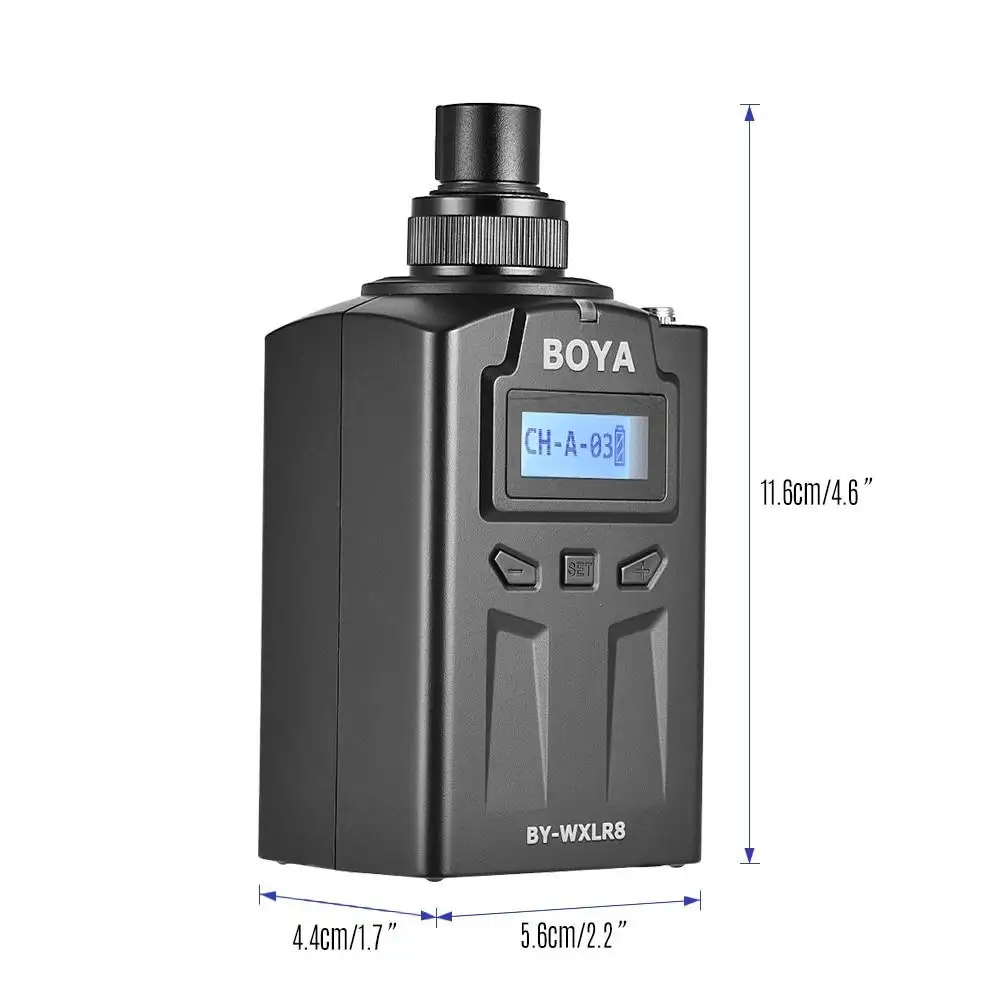

| Dimensions: | 5.7x4.55x11.69cm |
| Weight: | 162g (without batteries) |

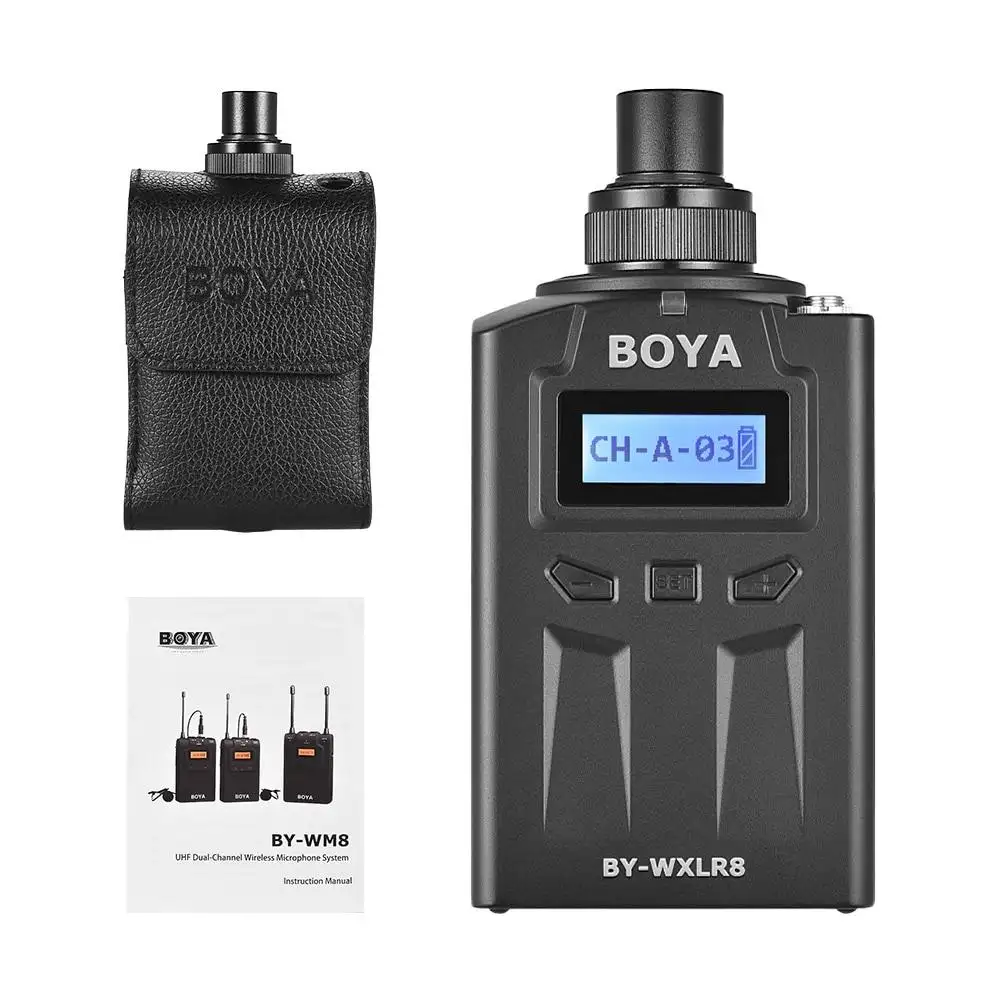

Package List:
1 * Mic

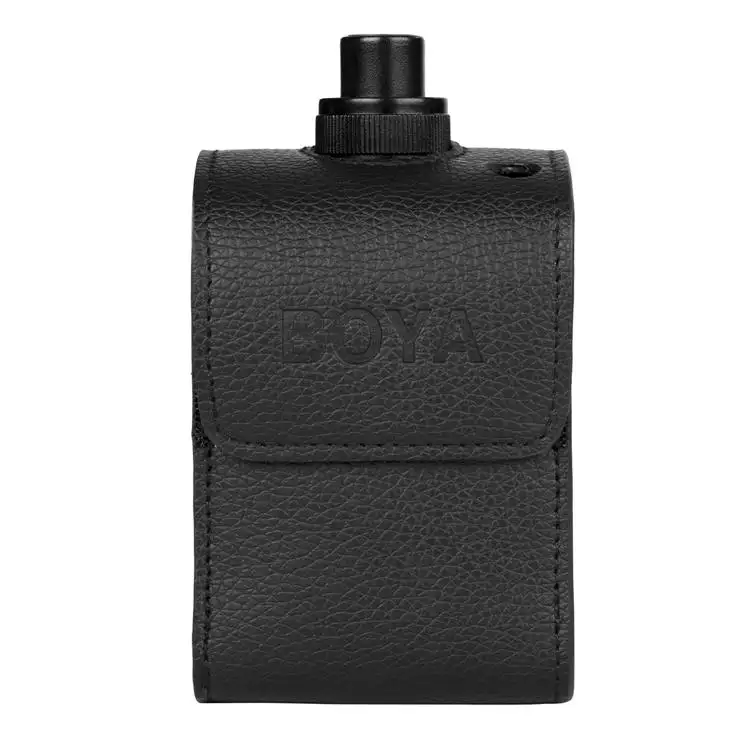

1 * Bag
1 * User Manual Series (English)
Battery is not included.
1 * Mic
1 * Bag
1 * User Manual Series (English)
Battery is not included.
